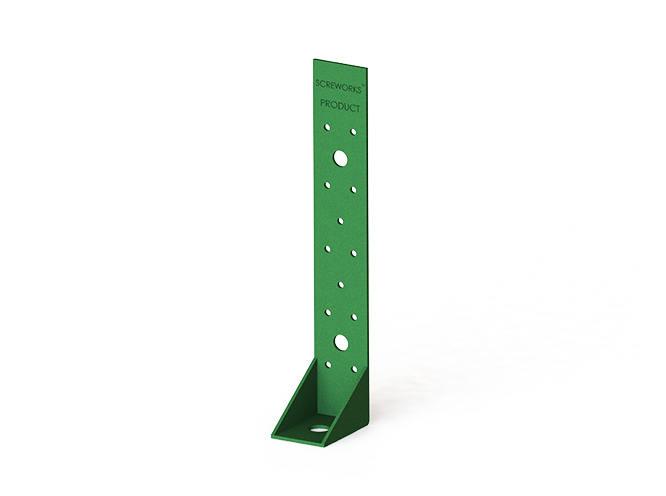

The Screworks Holdown Anchoring System is designed to support high-load shear walls, braced-wall panels, and lateral applications. Its unique seat design significantly reduces deflection under load.
1. Anchoring solution to secure steel frame structures to concrete, steel, or timber foundations and floors.
2. The Screworks Holdown Fix & Washer, paired with the Screworks Screw Bolt, offers a robust anchoring system designed to withstand uplift forces commonly found in light-framed single and two-story buildings.

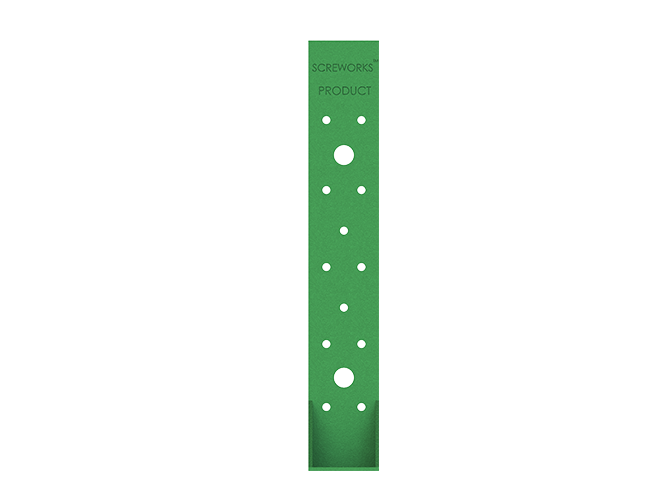

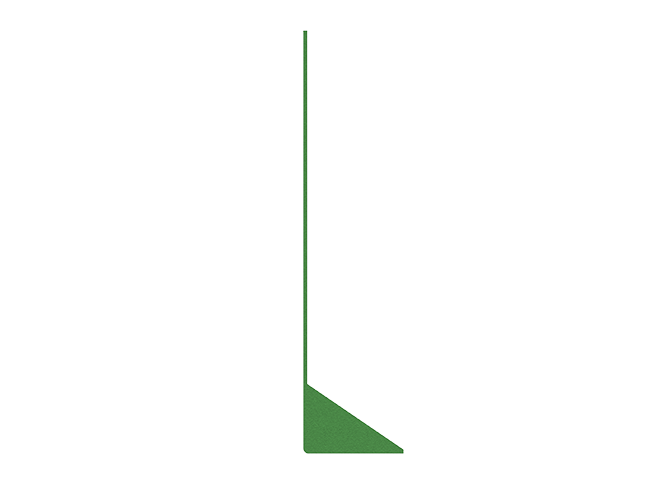

This model can be mounted directly onto the base track or elevated above it, making it ideal for back-to-back installations where eccentricity may be an issue. It incorporates a distinct seat design that effectively reduces deflection under load. The Holdown model is designed for secure installation using screws.
The Holdown Fix should be installed with the provided washer, the required number of Screworks 12g Hex Head Screws and an anchor bolt or screws with a design tension strength that meets the specified design capacities. For optimal performance, use Screworks M12 ScrewBolts. Note: Screworks M10 screw bolts may be used for internal connections where the concrete slab edge distance exceeds 60mm and the applied loads permit.
ScreworksTM products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. ScreworksTM and all other trademarks are registered trademarks of Stratus Steel Pvt. Ltd.
