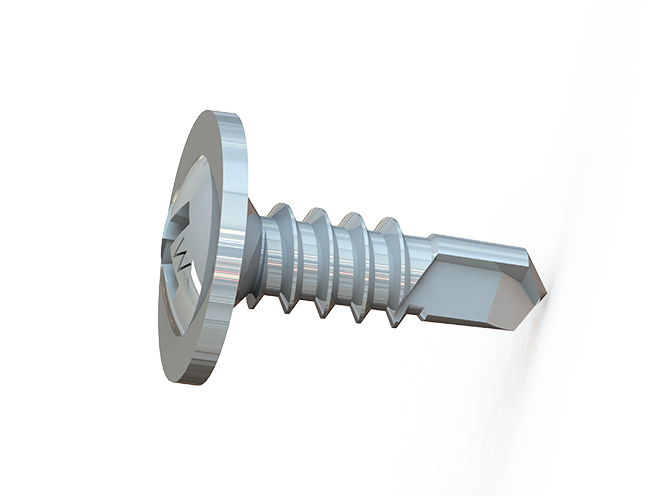

Phillips2 Wafer Head is designed with phillips2 recess which improves bit engagement, reducing wobble and strip-out. Its modified truss head offers a larger load-bearing surface for enhanced holding power. The extra sharp drill point ensures fast driving and better grip upto steel thickness of 3.6mm.
|
Reference Number
|
Thread Diameter
|
Length
|
Head Diameter
|
Head Height
|
Head Type
|
TPI
|
Screw Material
|
|---|---|---|---|---|---|---|---|
|
PHW8GB13SDC1
|
4.2mm/8g / 11/64"
|
13
|
10.5
|
2
|
Phillips Wafer head
|
18
|
SAE 1022 Carbon Steel
|
“1.Improved Bit Engagement: The #2 Phillips recess is designed for precise bit fit, reducing wobble and minimizing the risk of strip-out, resulting in more efficient and secure driving.
2.Enhanced Holding Power: The modified truss head design increases the load-bearing surface, offering superior holding strength and better resistance to pull-out.
3.Faster and Stronger Drive:ScreworksTM drill point modified truss head screws are made from premium materials, ensuring faster driving with extra-sharp threads that provide a stronger hold.
4.Effortless Drilling: The ultra-sharp, consistently formed drill point ensures easy penetration into heavy-gauge metal framing, improving productivity and accuracy.
5.Durable and Reliable: Adherence to strict manufacturing standards guarantees long-lasting, high-performance screws that deliver reliable results every time.”
1.Use the Right Screwgun: A standard screwgun with a depth-sensitive nosepiece is recommended for optimal performance. For best results, use a screwgun with specifications of Size #6 to #10, and a speed range of up to 2,500 RPM.
2.Ensure Proper Head Seating: The screw head is fully seated when the bearing surface of the head is flush with the work surface, ensuring a secure fit.
3.Proper Fastener Penetration: Ensure the fastener penetrates the metal by at least three full thread pitches to ensure a strong, reliable hold.
4.Avoid Overdriving: Overdriving the fastener may cause failure or strip-out within the substrate. Always monitor depth to avoid damage and maintain the integrity of the fastener.
1.prefabrication: Ideal for dry wall stud assembly for walls and ceiling.
2.Drill Point :Suitable for both pre-punched and non-punched BMT steel, accommodating thickness from .75 to 1.15mm.
3.Other metal-to-metal connections upto 3.6mm
ScreworksTM products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. ScreworksTM and all other trademarks are registered trademarks of Stratus Steel Pvt. Ltd.
