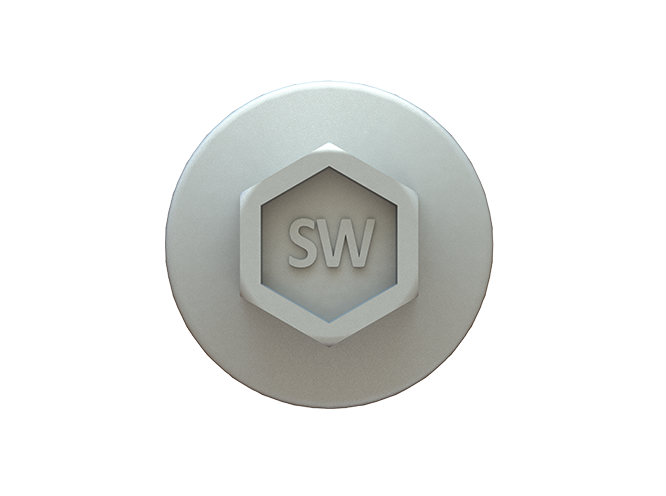

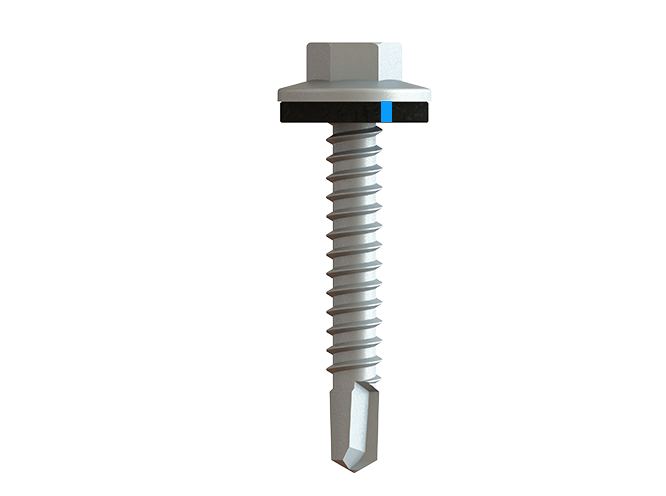

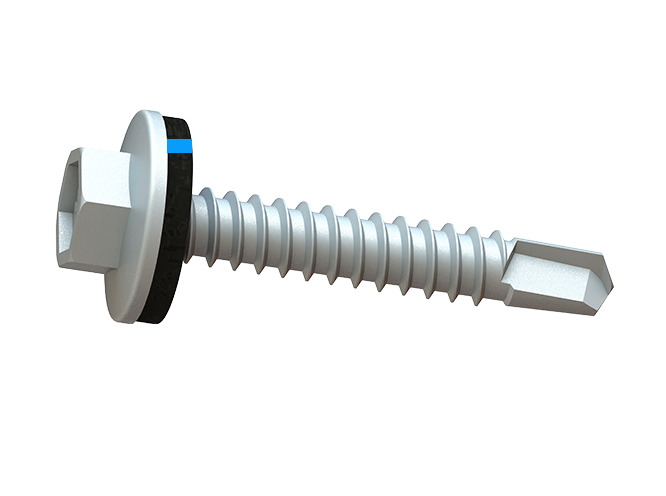

The Hex Flange Head design provides high torque for metal-to-metal applications, while the Drill Point (DP) is ideal for medium to heavy gauge steel, and the premium Screworks™ EPDM washers offer a durable waterproof seal, with head painting options available to match the roof color.
|
Reference Number
|
Thread Diameter
|
Length
|
Head Diameter
|
Head Height
|
Head Type
|
TPI
|
Screw Material
|
|---|---|---|---|---|---|---|---|
|
HF12GB35SD4C2E
|
5.5mm/10G / 0.2165"
|
35
|
14.5
|
5.8
|
Hex Flange Head with Washer
|
14
|
SAE 1022 Carbon Steel
|
1.The Hex flange Head design delivers high torque, making it perfect for metal-to-metal applications.
2.The Drill Point (DP) is designed for drilling into medium to heavy gauge steel.
3.Premium ScreworksTM EPDM washers ensure a reliable, long-lasting waterproof seal.
4.Head painting options are available to match the roof color.
1.Screwgun Recommendations: Utilize a standard screwgun equipped with a depth-sensitive nose piece. For optimal performance, the recommended RPM range is 1500 to 2,500. Exercise caution when using an impact driver due to its higher torque output, as this may lead to screw failure or spin-out.
2.Proper Seating: The hex head is fully seated when it is flush with the work surface. Overdriving can cause fastener failure or strip out the surface.
3.Penetration Requirement: Ensure that the fastener penetrates the metal by at least three full thread pitches. 4.EPDM Washers
SCREWRKS roofing screws are equipped with premium “SCREWORKS” EPDM washers. The quality of the EPDM washer is essential for ensuring a watertight seal for roof and cladding installations. A failure in the washer can lead to the need for screw replacements, or, in the worst case, significant damage to the roof and building structure.
It is important to avoid overdriving the roofing screws, as excessive compression can damage the washer and compromise its sealing effectiveness.
By adhering to these guidelines, you can ensure effective installation and optimal performance of Screworks fasteners.
1.For Metal Roof Installation
2.Specifically designed to secure long-run steel roofing and side cladding materials, such as sandwich boards.
ScreworksTM products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. ScreworksTM and all other trademarks are registered trademarks of Stratus Steel Pvt. Ltd.
