Bugle Scavenger Head isdesigned for securely fixing cladding to light gauge steel frames (over 0.95mm thick). It enables quick and easy penetration into steel, simplifying installation. The design ensures a flush, neat fit with a flat bearing surface for secure attachment. A cam-out mechanism prevents overdriving, protecting lining board surfaces from damage. It is also engineered to seat securely into softwood or drywall, providing a clean, flush surface finish.
|
Reference Number
|
Thread Diameter
|
Length
|
Head Diameter
|
Head Height
|
Head Type
|
TPI
|
Screw Material
|
|---|---|---|---|---|---|---|---|
|
B6GB38SDPHB
|
3.5mm/6g/9/64"
|
38
|
8.5
|
-
|
Bugle Scavenger head
|
18
|
SAE 1022 Carbon Steel
|
• Self-Tapping Drill Point Design: Optimized for securely fixing cladding to light gauge steel frames with a thickness of over 0.95mm.
• Self-Tapping Pin Point: Allows for quick and effortless penetration into steel, streamlining the installation process.
• Flat Countersunk (CSK) Head: Ensures a smooth, flush fit with a flat bearing surface for a neat, secure attachment.

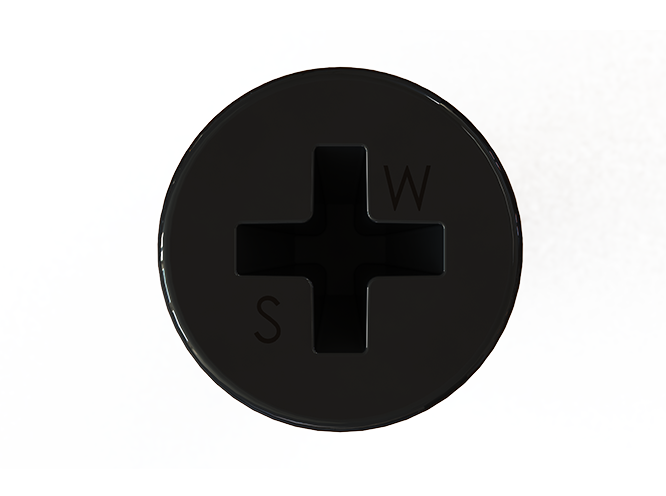

• Phillips Head Drive: Features a cam-out mechanism to prevent overdriving, safeguarding the paper surface of lining boards from damage.
• Bugle Scavenger Head: Engineered to seat quickly and securely into softwood or drywall, producing a clean, flush surface finish.
1. Suggested screw gun specification for optimal performance – Size #6 – #10, up to 4,000 RPM.
2.For gypsum board applications, the bugle head should be fully seated when the screw is driven just below the surface of the wallboard.
Suitable for fixing Gypsum and MGO Board lining to light gauge steel frames.
ScreworksTM products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. ScreworksTM and all other trademarks are registered trademarks of Stratus Steel Pvt. Ltd.
